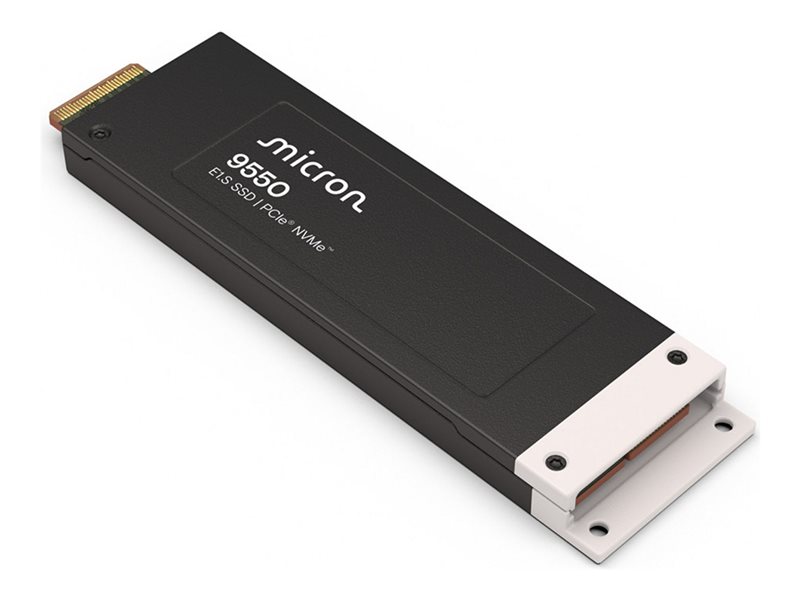

Micron Technology - Micron 9550 PRO
SSD - Enterprise - encrypted - 15.36 TB - internal - E1.S - PCI Express 5.0 x4 (NVMe) - 256-bit AES, FIPS 140-3 Level 2 - TCG Opal Encryption 2.02, Self-Encrypting Drive (SED)
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Micron 9550 PRO - SSD - Enterprise - 15.36 TB - PCI Express 5.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 15.36 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES, FIPS 140-3 Level 2 |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | E1.S |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Drive Class | Enterprise |
| Features | Open Compute Project 2.0, NVM Express (NVMe) 2.0b, static wear leveling, Dynamic Wear Leveling, End-to-end data path protection, Power Loss Protection (PLP), Surprise Insertion capable, Surprise Removal capable, Hot-Plug Support, Firmware Upgrade without Reset, S.M.A.R.T. |
| Dimensions (WxDxH) | 33.75 mm x 118.75 mm x 15 mm |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 15.36 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES, FIPS 140-3 Level 2 |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | E1.S |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Bytes per Sector | 512 |
| Features | Open Compute Project 2.0, NVM Express (NVMe) 2.0b, static wear leveling, Dynamic Wear Leveling, End-to-end data path protection, Power Loss Protection (PLP), Surprise Insertion capable, Surprise Removal capable, Hot-Plug Support, Firmware Upgrade without Reset, S.M.A.R.T. |
| Width | 33.75 mm |
| Depth | 118.75 mm |
| Height | 15 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, UL, cUL, BSMI, RCM, KC, RRL, WEEE, TUV, VCCI, IC, Morocco, UkrSEPRO, UKCA |
| Power | |
| Power Consumption | 18 Watt (sequential read) ¦ 16 Watt (sequential write) ¦ 5 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| SSD Endurance | 104.5 TB |
| Drive Class | Enterprise |
| Internal Data Rate | 14000 MBps (read) / 10000 MBps (write) |
| 4KB Random Read | 3300000 IOPS |
| 4KB Random Write | 400000 IOPS |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) |
| Compatible Bay | E1.S |
