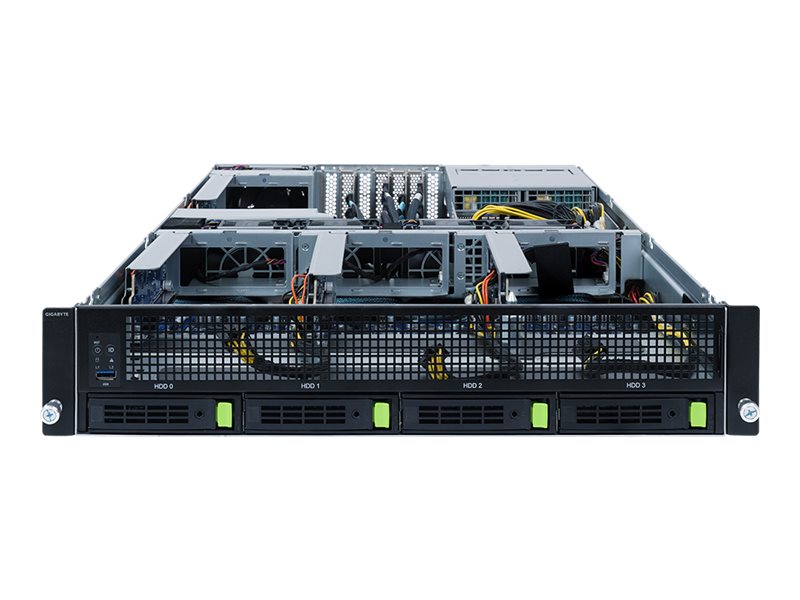

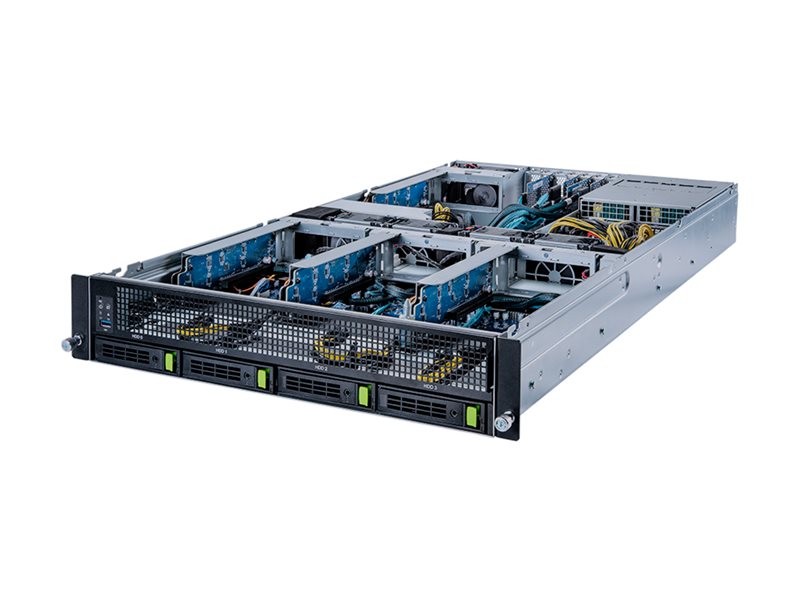

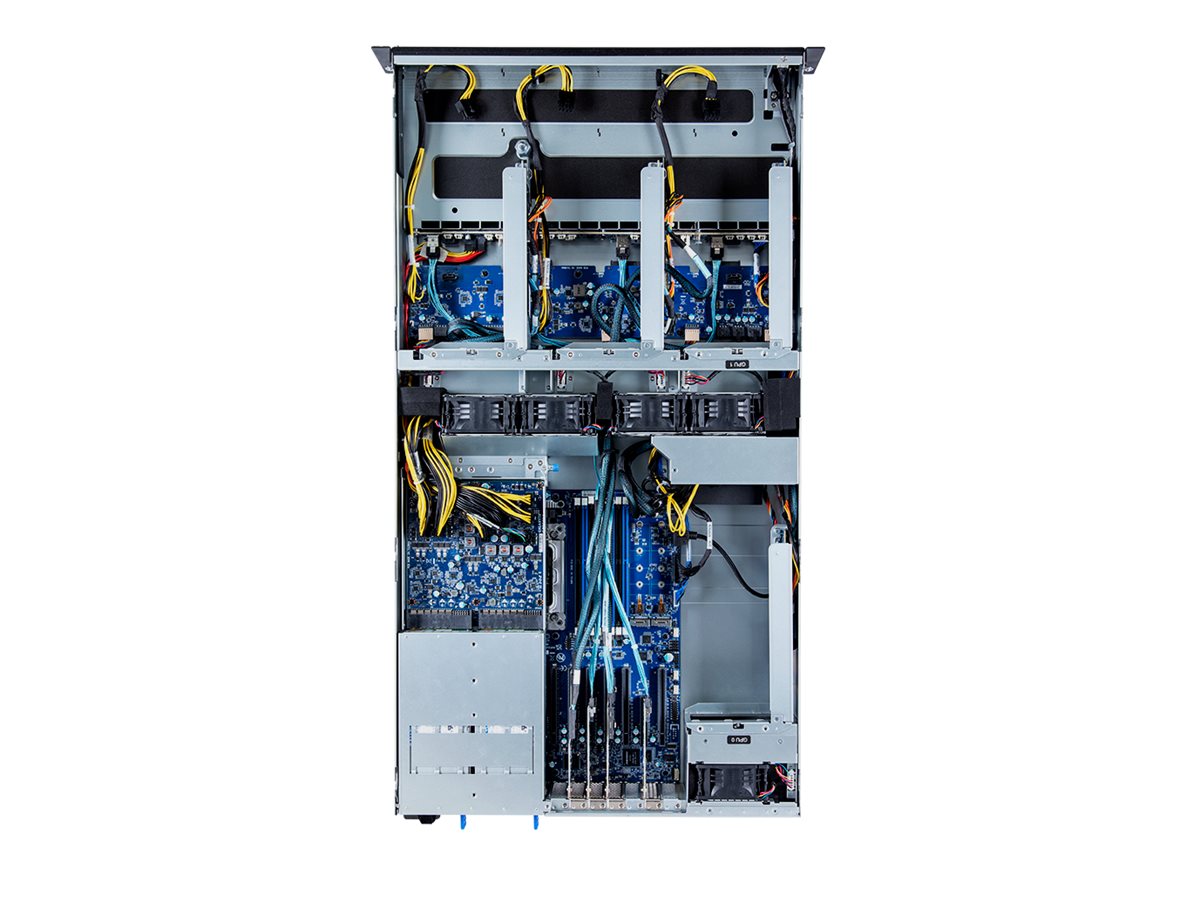

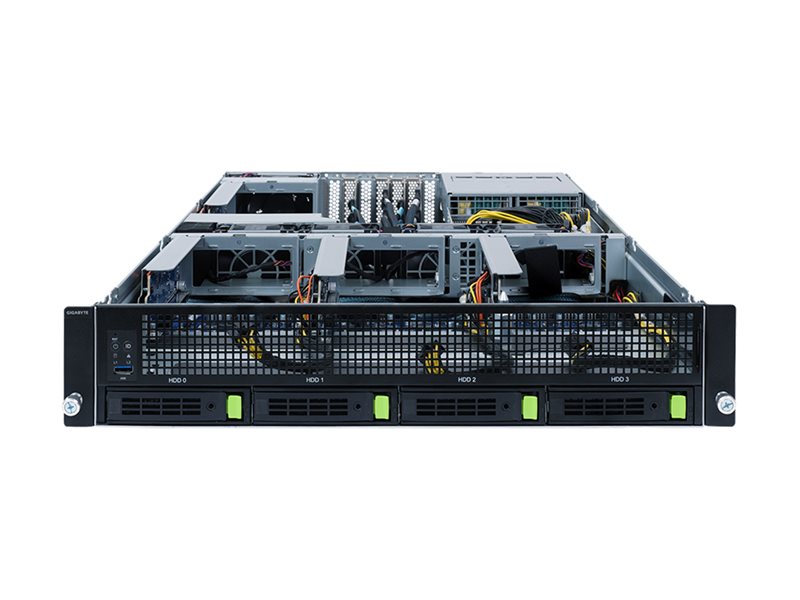

GIGABYTE - Gigabyte G242-P35
Server - rack-mountable 2U - 1-way - no CPU - RAM 0 GB - NVMe - hot-swap 2.5", 3.5" bay(s) - no HDD - AST2500 - Gigabit Ethernet - no OS - monitor: none
GIGABYTE
G242-P35
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Gigabyte G242-P35 - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | LGA4926 Socket |
| RAM | 0 GB (installed) / 4 TB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Server Storage Bays | Hot-swap 2.5", 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2500 |
| Networking | 1GbE |
| Power | (50 - 60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 43.8 cm x 82 cm x 8.75 cm |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared |
| Slots | 4 (total) / 4 (free) x PCIe 4.0 x16 ¦ 2 (total) / 2 (free) x PCIe 4.0 x8 - low-profile ¦ 2 (total) / 2 (free) x M.2 Card - 2242/2260/2280/22110 (PCIe 4.0 x4 mode) |

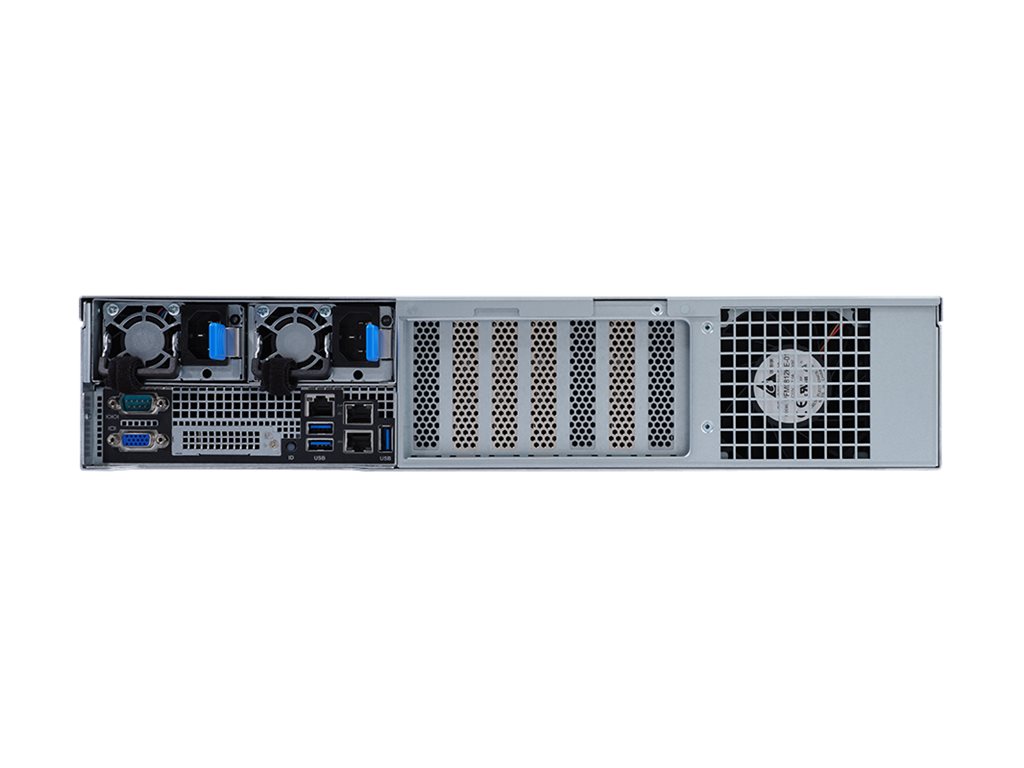

| Interfaces | 1 x VGA (1 rear) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) ¦ 1 x management (NIC) - RJ-45 (1 rear) ¦ 4 x USB 3.2 Gen 1 (1 front, 3 rear) ¦ 1 x serial (1 rear) |
| Miscellaneous | |
| Included Accessories | CPU Heatsink, rack rail kit |
| RAM | |
| Installed Size | 0 GB (installed) / 4 TB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 16 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I350-AM2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Aspeed AST2500 |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 1600 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 80% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| OS Provided | No operating system |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 82 cm |
| Height | 8.75 cm |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA4926 Socket |
| Motherboard Name | GIGABYTE MP32-AR2 |
