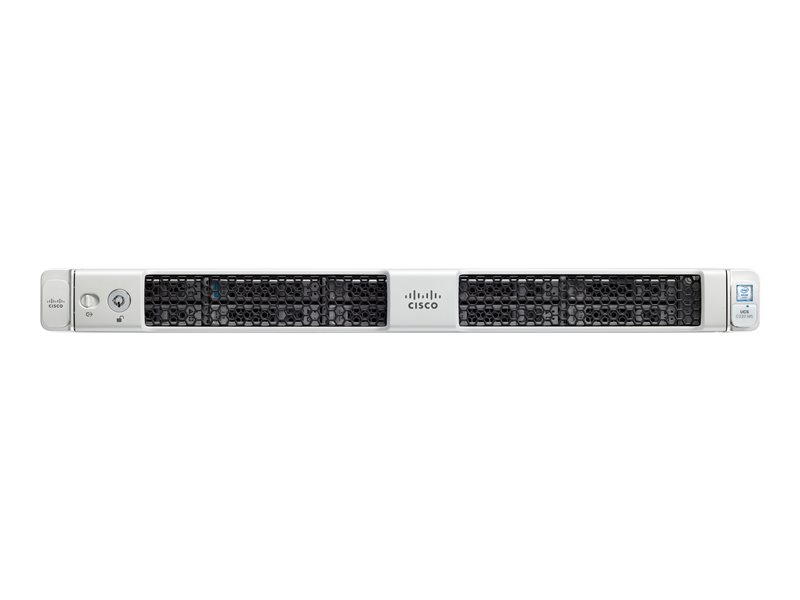

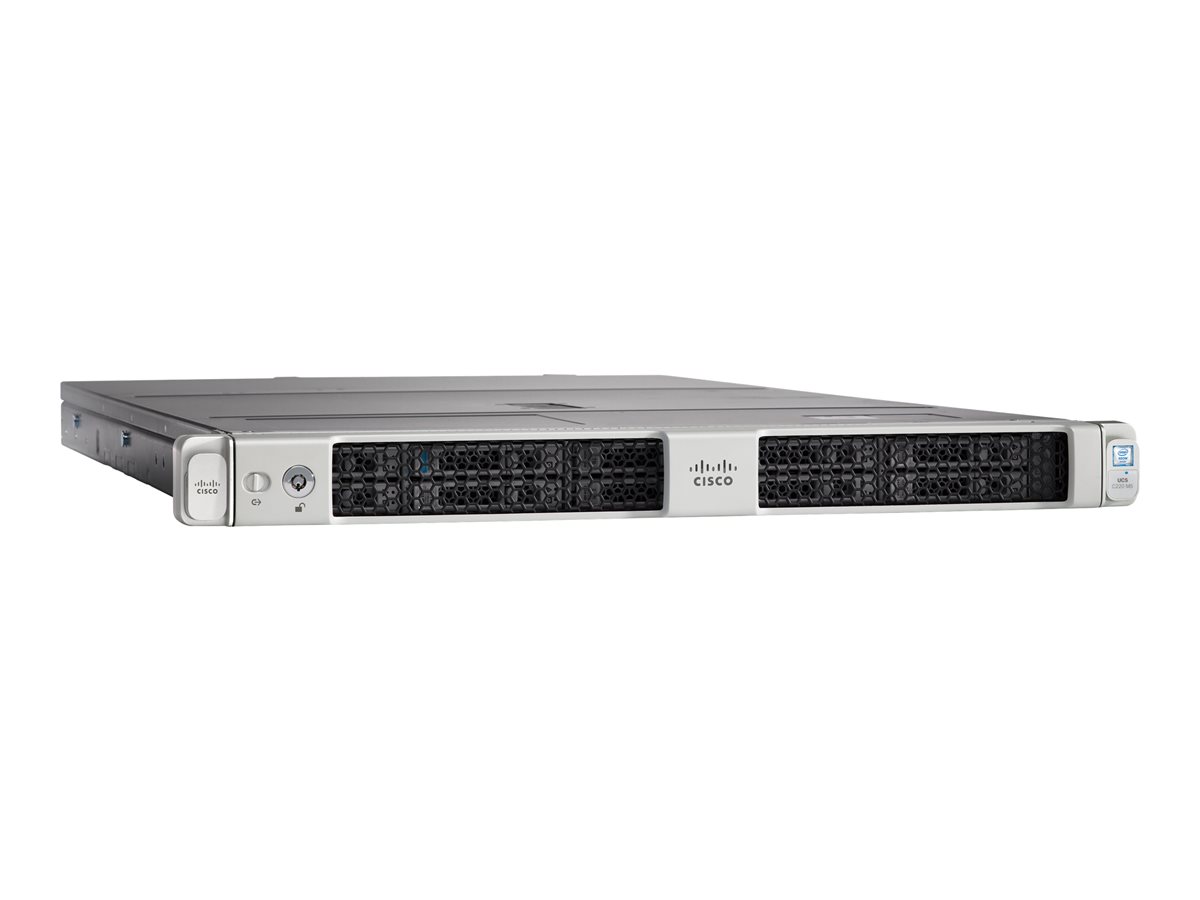

Cisco - Cisco UCS SmartPlay Select C220 M5SX
Server - rack-mountable - 1U - 2-way - 2 x Xeon Silver 4116 / up to 3 GHz - RAM 32 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - Pilot 4 - 10 Gigabit Ethernet - monitor: none - remanufactured
Cisco
UCS-SPRC220M5A1-RF
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco UCS SmartPlay Select C220 M5SX - rack-mountable - Xeon Silver 4116 2.1 GHz - 32 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon Silver 4116 / 2.1 GHz (, up to 3 GHz, (12-core) |
| Cache Memory | 33 MB |
| Cache Per Processor | 16.5 MB |
| RAM | 32 GB (installed) / 3072 GB (max) - DDR4 SDRAM - ECC - PC4-21300 |
| Storage Controller | RAID (SAS 12Gb/s) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED Pilot 4 |
| Video Memory | 16 MB |
| Networking | 10GbE |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 43 cm x 75.6 cm x 4.32 cm |
| Pricing Type | Remanufactured |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 10 |
| Hot-Swap Bays Qty | 10 |
| Expansion / Connectivity | |
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x24 - half-length, half-height (x16 mode / NCSI support) ¦ 1 (total) / 1 (free) x PCIe 3.0 x24 - three-quarter-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x mLOM |
| Interfaces | 2 x USB 3.0 (2 rear) ¦ 1 x VGA - DB-15 (1 rear) ¦ 1 x serial - RJ-45 (1 rear) ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 (2 rear) ¦ 1 x management (NIC) - RJ-45 (1 rear) ¦ 1 x KVM (1 in front) |
| Miscellaneous | |
| Included Accessories | 2 x CPU Heatsink, 32 GB SD Memory Card, Cisco Ball Bearing Rail Kit, 2 x power supply blanking panel, 10 x drive blanking panels, interposer board (8 drive) |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, ACPI 4.0, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, FCC CFR47 Part 15 A, GB 4943-2001, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN35, Directive 2014/35/EU, Directive 2014/30/EU, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CISPR 32 Class A |
| Pricing Type | Remanufactured |
| RAM | |
| Installed Size | 32 GB (installed) / 3072 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Rated Memory Speed | 2666 MHz |
| Memory Specification Compliance | PC4-21300 |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 22 (empty) |
| Features | Load-Reduced DIMM (LRDIMM), 6-channel memory architecture |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 2 x 40 Gigabit Ethernet |
| Ethernet Controller | Cisco UCS Virtual Interface Card 1387, Intel X550 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | SNMP 2, SNMP 3, IPMI 2.0, CLI |
| Remote Management Controller | Intel Baseboard Management Controller (BMC) |
| Features | Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 770 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Buffer Size | 2 GB |
| Cache Memory | |
| Installed Size | 33 MB |
| Cache Per Processor | 16.5 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED Pilot 4 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 43 cm |
| Depth | 75.6 cm |
| Height | 4.32 cm |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4116 |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 12-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
